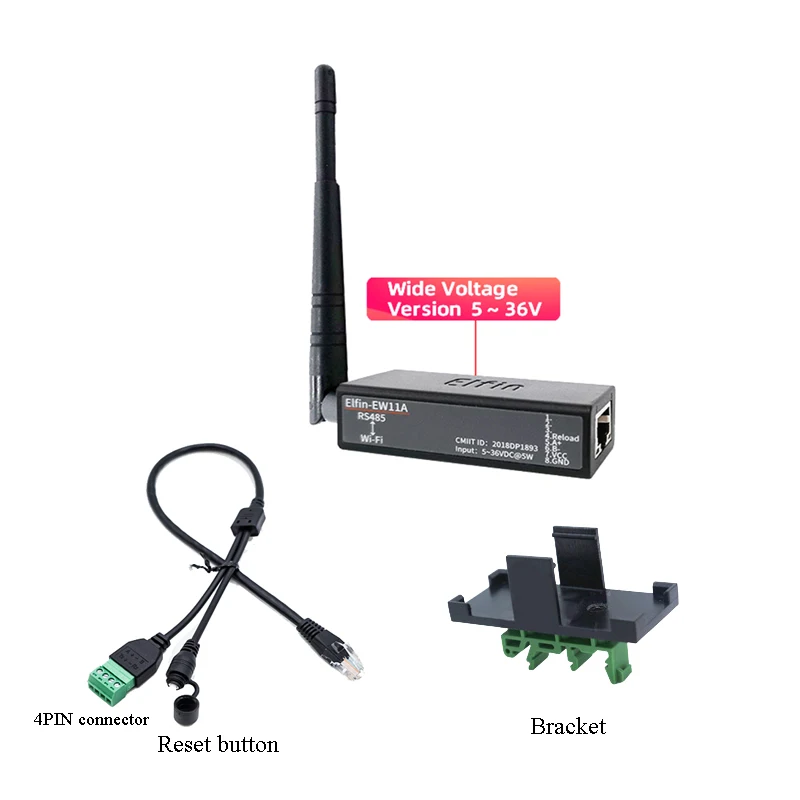

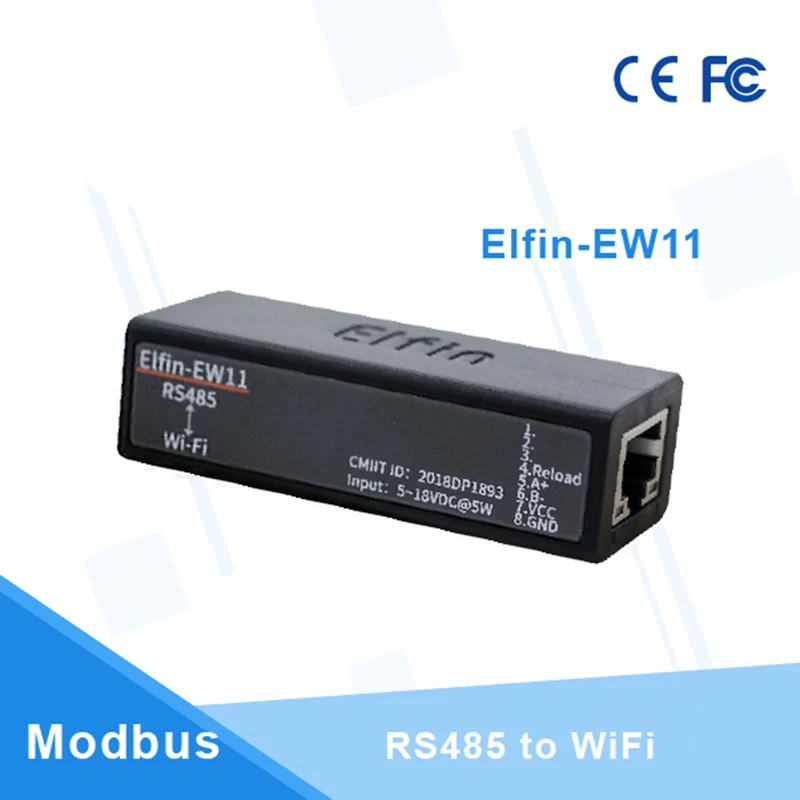

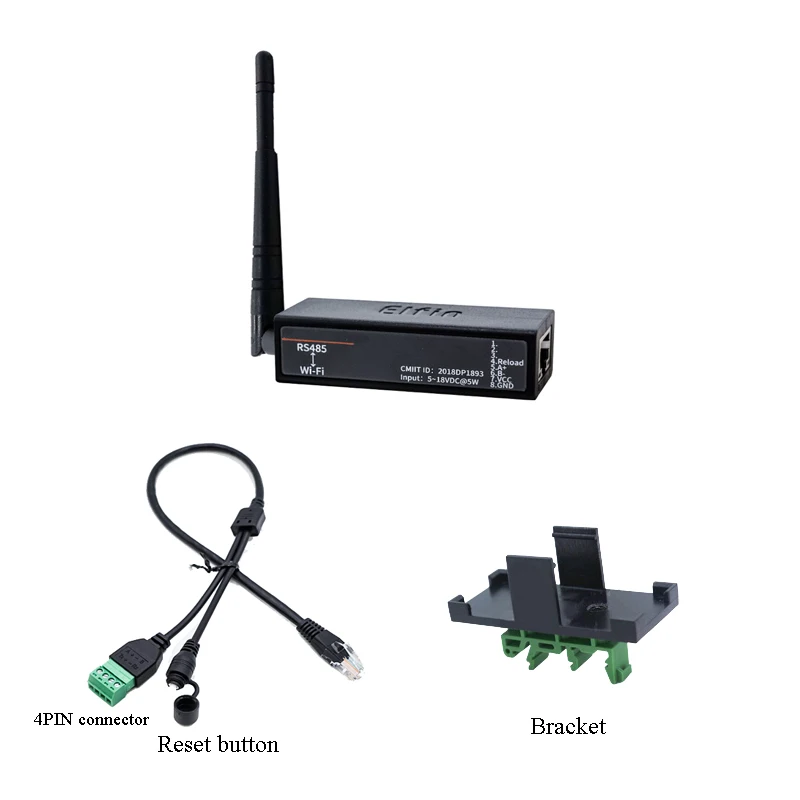

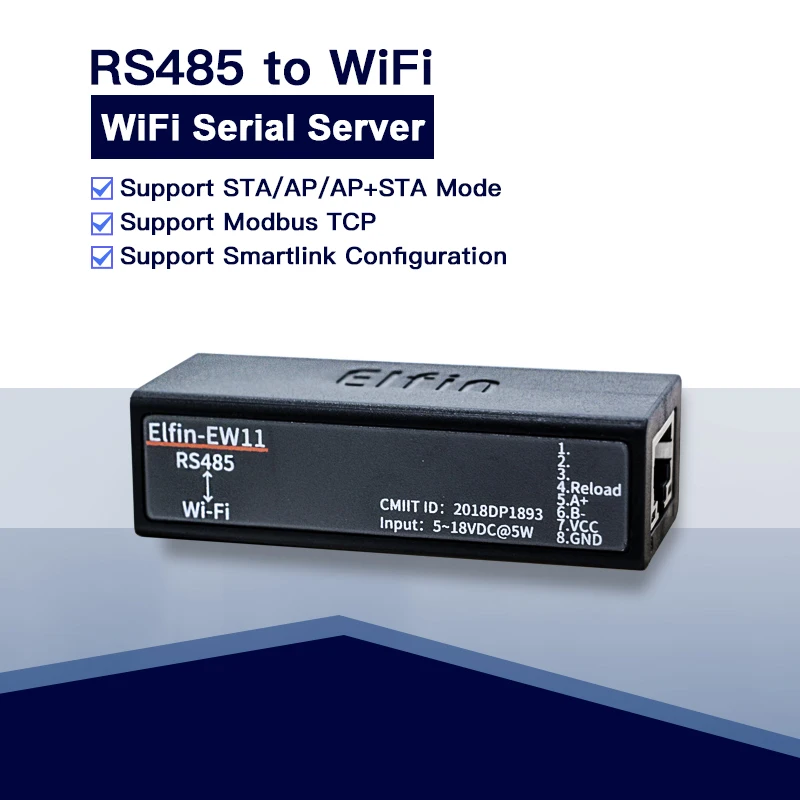

The Elfin-EW1X unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES) encryption.
Elfin-EW1X serial server for data transfer via Wi-Fi, which makes the data transformation very simple.
Overview of Characteristic:
Support 802.11bgn Wireless Standard
Support TCP/UDP/Telnet /Modbus TCP Protocol
Support RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Up to 460800 bps
Support STA/AP/AP+STA Mode
Support link V8 Config(Provide APP)
Support Easy Configuration Through Web Interface or PC IOT Service Tool
Support Security Protocol Such As TLS/AES/DES3
Support Web OTA Wireless Upgrade
Support Internal PCB Antenna
Wide DC Input 5~18VDC
Size: 61 x 26 x 17.8 mm (L x W x H)
FCC/CE/SRRC Certificated
|
Item |
Parameters |
|
System Information |
|
|
Processor/Frequency |
160MHz |
|
Flash/SDRAM |
2MB/448KB |
|
Operating System |
mbed |
|
Protocol |
|
|
Network Protocol |
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, uPNP, NTP, Modbus TCP |
|
Security Protocol |
TLS v1.2 AES 128Bit DES3 |
|
Wi-Fi Interface |
|
|
Standard |
802.11 b/g/n |
|
Frequency |
2.412GHz-2.484GHz |
|
Network Mode |
STA/AP/STA+AP |
|
Security |
WEP/WPAPSK/WPA2PSK |
|
Encryption |
WEP64/WEP128/TKIP/ AES |
|
Tx Power |
802.11b: +18dBm(Max.) 802.11g: +16dBm(Max.) 802.11n: +15dBm(Max.) |
|
Rx Sensitive |
802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
|
Antenna |
Internal:PCB |
|
Serial Port |
|
|
Port Number |
EE10：1 RS232 EE11：1 RS485 |
|
Data Bits |
7,8 |
|
Stop Bit |
1,2 |
|
Check Bit |
None,Even,Odd |
|
Baud Rate |
TTL: 600 bps~460800 bps |
|
Flow Control |
No Flow control Software Xon/ Xoff flow control |
|
Software |
|
|
Web Pages |
Http Web Configuration Customization of HTTP Web Pages |
|
Configuration |
Web CLI XML import Telnet IOTService PC Software |
|
Basic Parameter |
|
|
Size |
61 x 26 x 17.8 mm |
|
Operating Temp. |
-40 ~ 85°C |
|
Storage Temp. |
-45 ~ 105°C, 5 ~ 95% RH（no condensation） |
|
Input Voltage |
5~18VDC |
|
Working Current |
~200mA |
|
Power |
<700mW |
|
Other Information |
|
|
Certificate |
FCC/CE/SRRC/RoHS |
