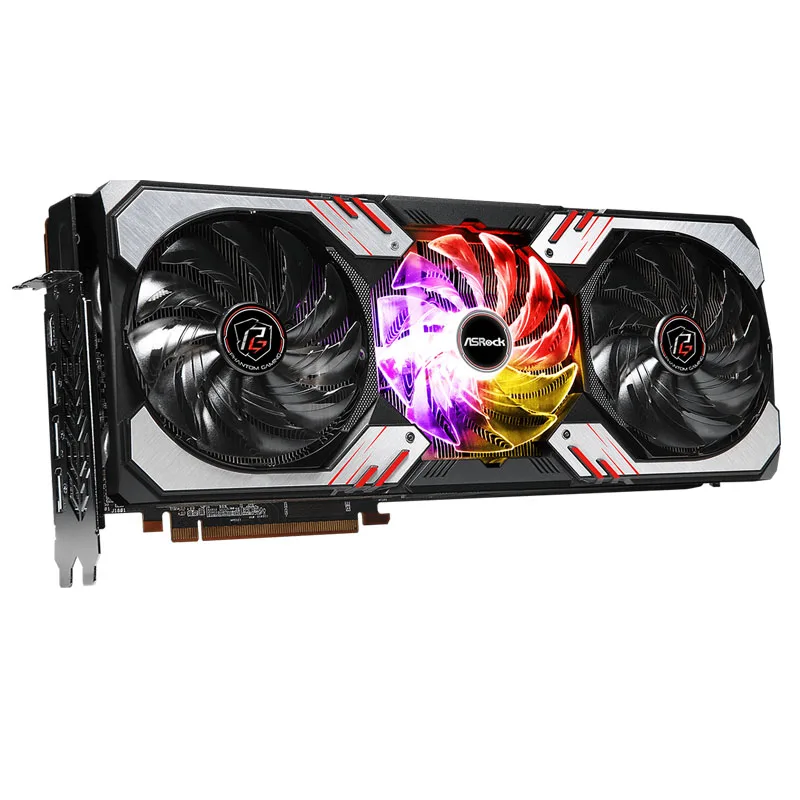

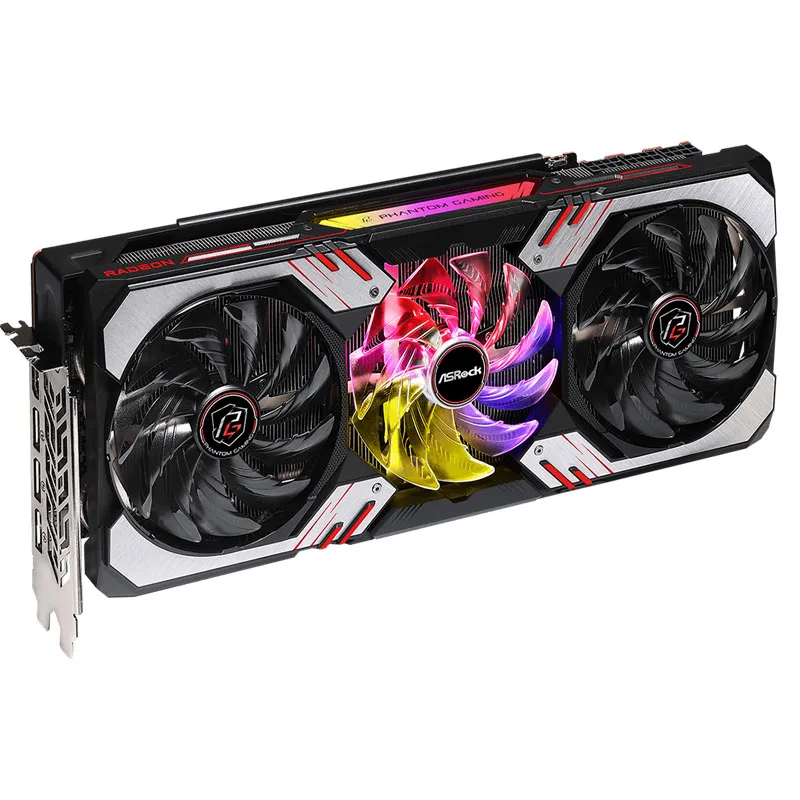

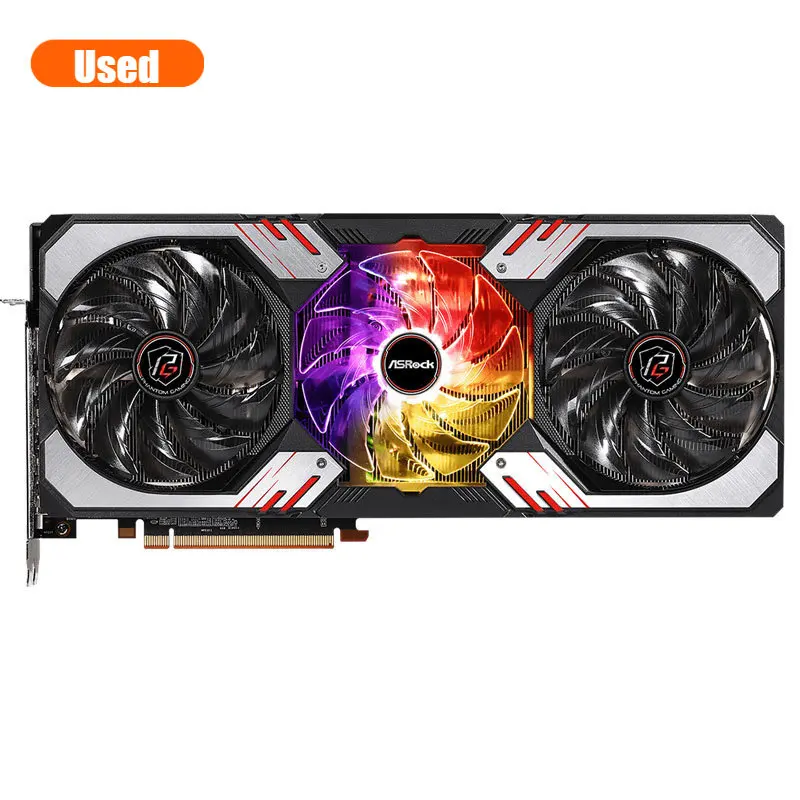

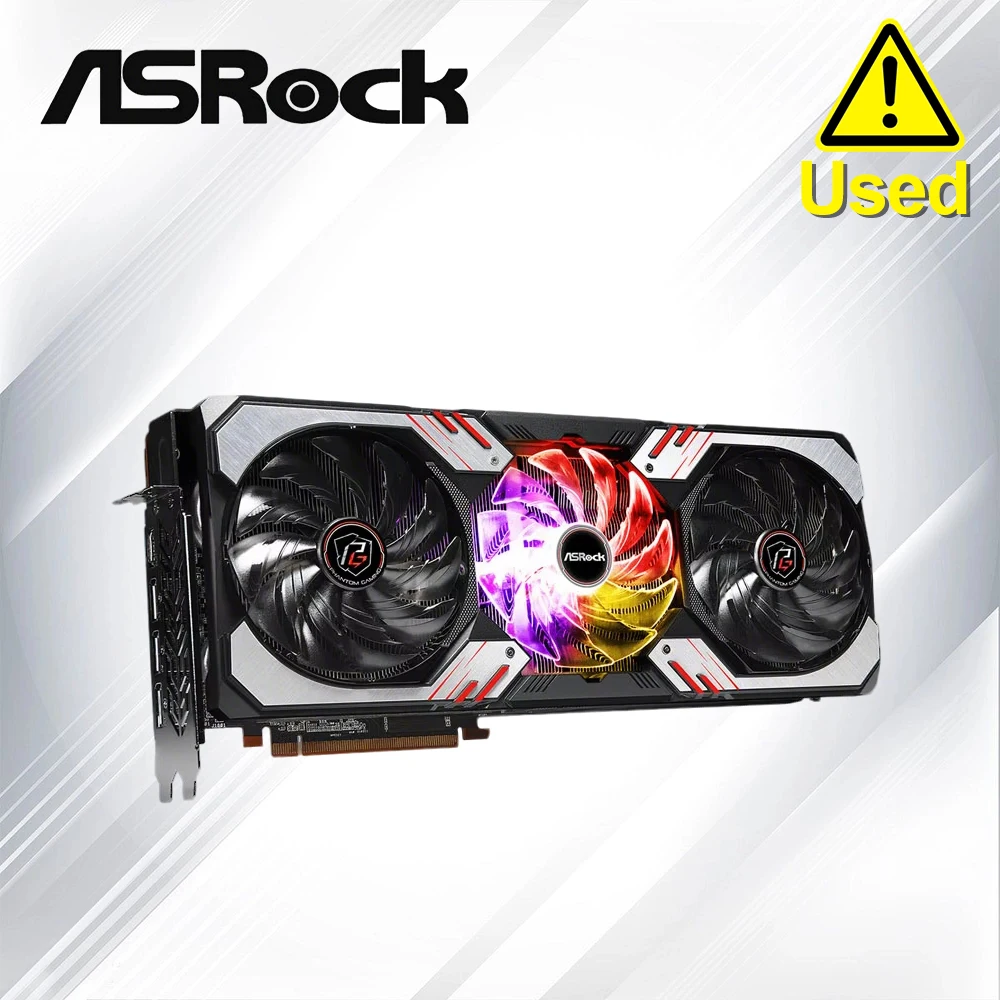

ASRock RX 6800XT PG D 16G OC AMD Radeon RX6800XT Graphics Board 16GB

Clock: GPU / Memory
Boost Clock: Up to 2310 MHz / 16 Gbps
Game Clock: Up to 2065 MHz / 16 Gbps
Base Clock: 1875 MHz / 16 Gbps
Key Specifications
7nm AMD Radeon™ RX 6800 XT Graphics
16GB 256-bit GDDR6
AMD RDNA™ 2 Architecture
Hardware Raytracing
PCI® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame

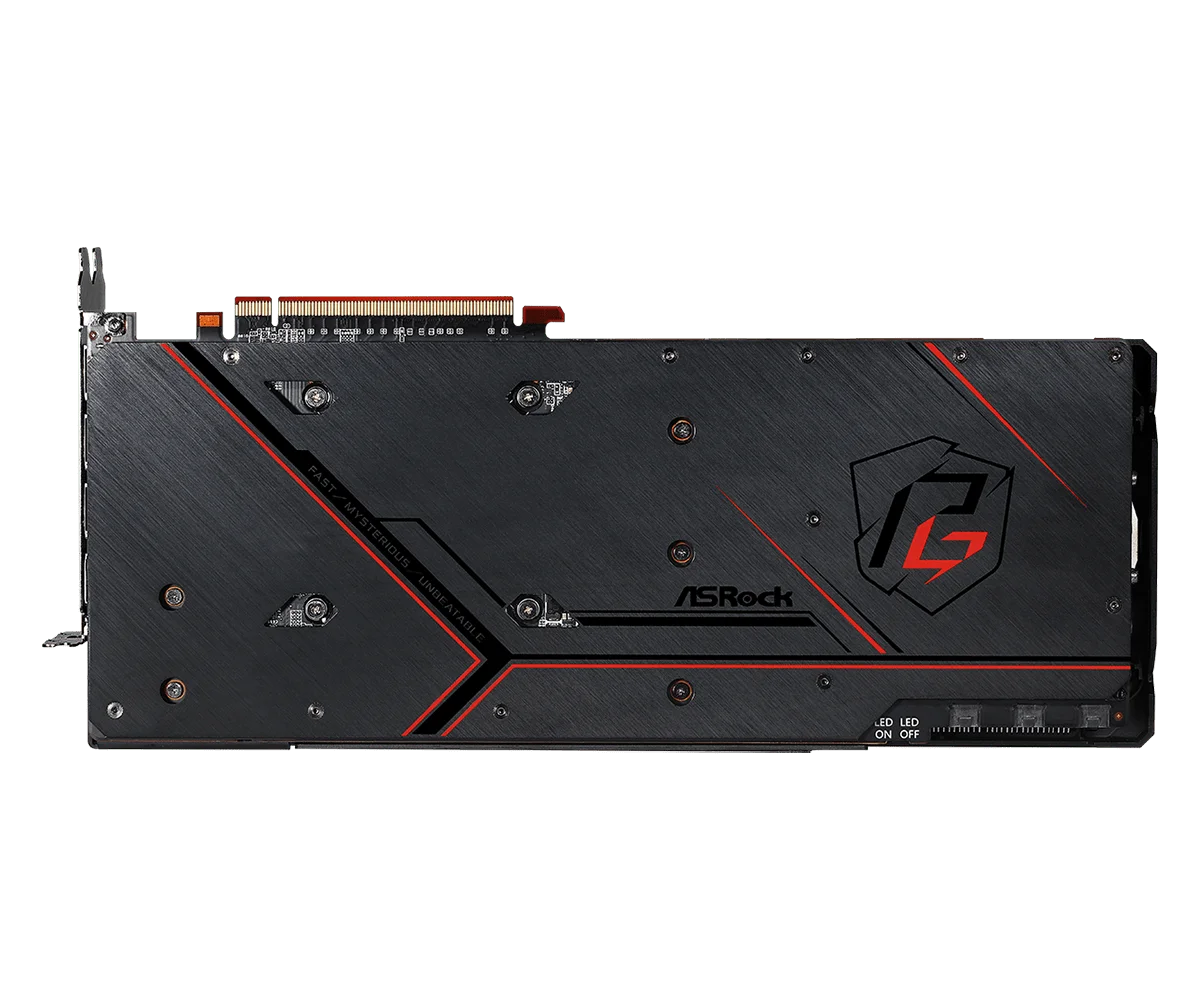

Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

Graphics Engine
– AMD Radeon™ RX 6800 XT Graphics
Bus Standard
– PCI® Express 4.0 x16
DirectX
– 12 Ultimate
OpenGL
– 4.6
Memory
– GDDR6 16GB
Engine Clock
– Boost Clock: Up to 2310 MHz
– Game Clock: Up to 2065 MHz
– Base Clock: 1875 MHz
Stream Processors
– 4608
Compute Units
– 72
Memory Clock
– 16 Gbps
Memory Interface
– 256-bit
Resolution
– Digital Max Resolution: 7680 x 4320

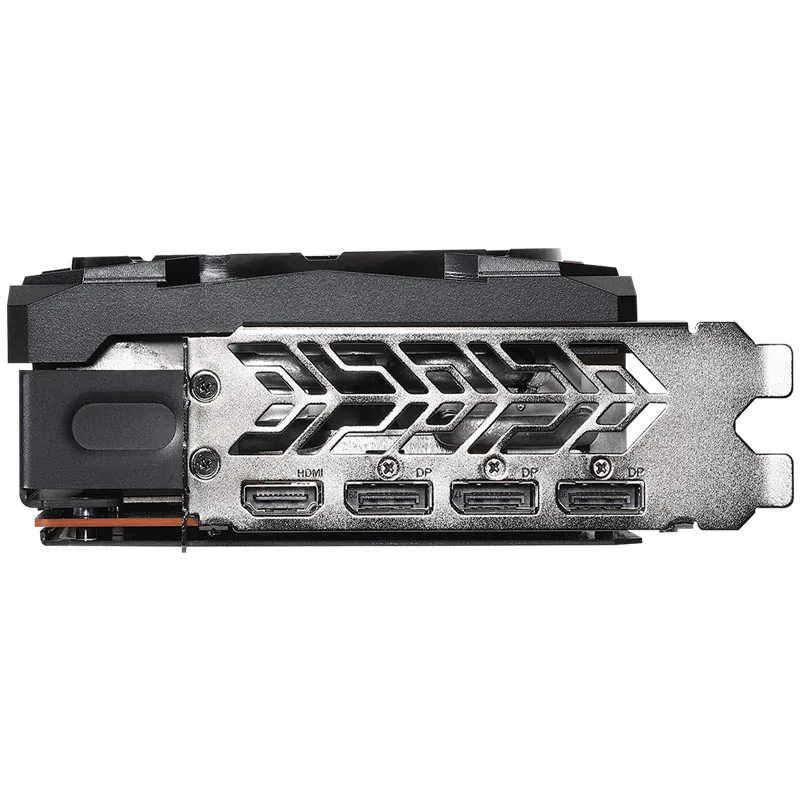

Interface
– 1 x HDMI™ 2.1 VRR
– 3 x DisplayPort™ 1.4 with DSC
HDCP
– Yes
Multi-view
– 4
Recommended PSU
– 800W
Power Connector
– 3 x 8-pin
Accessories
– 1 x Quick Installation Guide
Dimensions
– 330 x 140 x 56 mm, 2.8-slot
Net Weight
– 1784 g
